BENINCA - IRREVERSIBLE GEARMOTOR 24 Vdc FOR SECTIONAL DOORS UP TO 22 M2, SUITABLE FOR INTENSIVE USE
- CONTROL CENTRE, RADIO RECEIVER AND ENCODER ARE INCORPORATED INTO THE AUTOMATION SYSTEM
- CAN BE USED WITH BELT OR CHAIN TRACK
- ADJUSTABLE STROKE WITH ONE MECHANICAL LOCK INCLUDED IN THE BELT RAILS AND TWO IN THE CHAIN RAILS
- ANTI-CRUSH SYSTEM WITH AMPEROMETRIC DETECTION
- GUARANTEED OPERATION EVEN IN THE EVENT OF A POWER FAILURE THANKS TO BATTERIES THAT CAN BE PERFECTLY INTEGRATED INTO THE MOTOR
- ADVANCED ELECTRONICS WITH DISPLAY AND LOW-CONSUMPTION COURTESY LIGHT
- THE ENCODER DEVICE GUARANTEES MAXIMUM SAFETY AND PRECISION DURING DOOR MOVEMENT.
- QUICK-CONNECT SYSTEM FOR THE SKID CONNECTION ARM TO THE DOOR
INCLUDED 1 TO.GO2VA TRANSMITTER
RAIL NOT INCLUDED

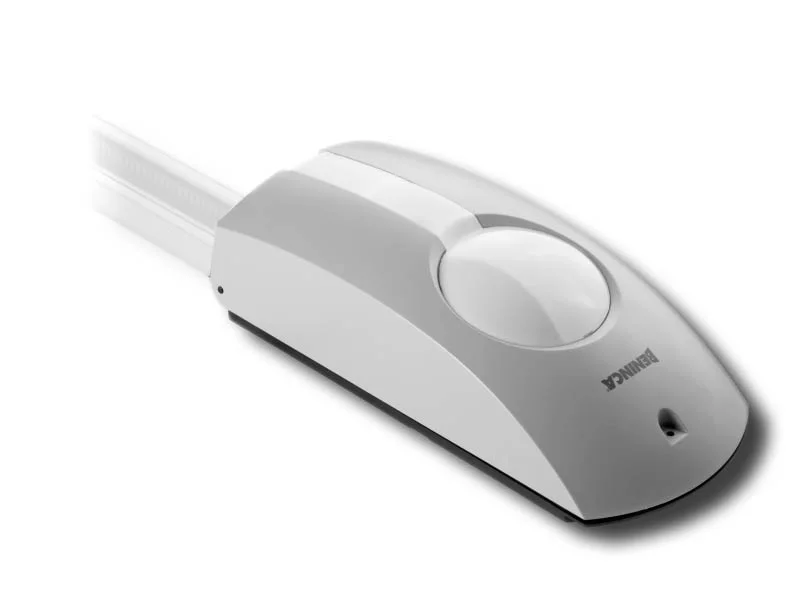

GEARMOTOR FOR SECTIONAL DOORS
JM.4ESA 9592383
TECHNICAL SPECIFICATIONS:
MAINS POWER SUPPLY: 230V (50-60Hz)
MOTOR POWER SUPPLY: 24V
MAXIMUM CURRENT ABSORBED: 1,5 A
STANDBY POWER CONSUMPTION: 8 mA
TRACTION/THRUST FORCE: 1200 N
OPENING TIME: 8,9 M/MIN
WORKING CYCLE: INTENSIVE USE
PROTECTION INDEX: IP40
OPERATING TEMPERATURE: -20°C /+50°C
LIMIT SWITCH: ELECTRONIC WITH ENCODER
