CAME AUTOMATION KIT BX-74, TESTED ACCORDING TO STANDARDS EN 12453-EN 12445
COMPLETE SYSTEM FOR SLIDING GATES UP TO 400 KG
230V AC MOTOR
801MS-0020 BX704AGS (EX BX-74)
001U2906 U2906 (EX U2910)
230V AC

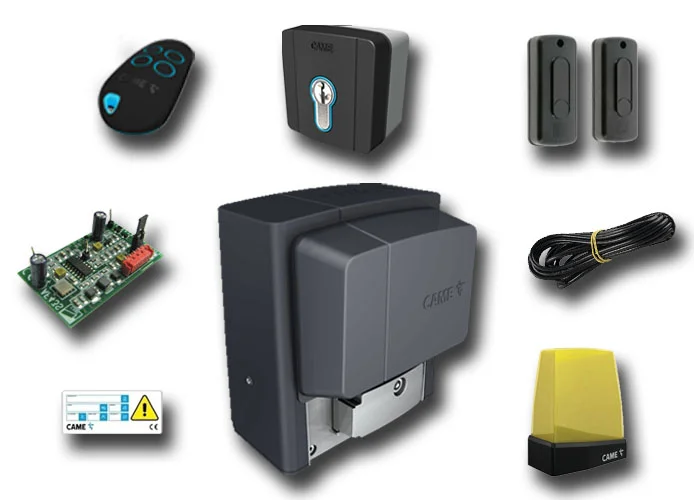

IT INCLUDES:
- 1 801MS-0020 BX704AGS (ex BX-74): Operator with control board, on-board radio decoding, movement control and obstruction detecting device, plus mechanical limit-switches for sliding gates weighing 400 kg and measuring up to 4 Mt long.
- 1 AF43S: Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: antenna cable 5 Mt
- 1 806SL-0050: Surface-mounted key-switch selector with din lock cylinder, blue retroillumination blu. cover grey ral7024.
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
- 1 806LA-0030: Led flashing light with power supply from 24 v ac - dc up to 230 v ac with yellow dome, double built-in antenna (433.92 mhz and 868.35 mhz)
- 1 Gate plate
