CAME - AUTOMATION KIT FROG-A 001U1921, TESTED ACCORDING TO EN12453 - EN12445 STANDARDS
COMPLETE SYSTEM FOR SWING GATES UP TO 3,5 MT PER LEAF, WITH 230V AC MOTOR
KIT FROG-AE
001U1921 U1921
230V AC

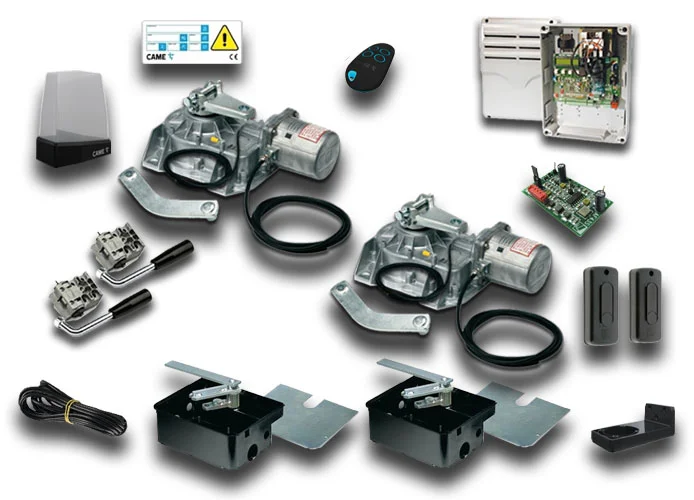

IT INCLUDES:
- 2 FROG-AE: Irreversible gearmotors for swing gates of up to 3.5 Mt per leaf, with adjustable closing leaf-stop, with encoder, 230V AC
- 2 FROG-CFN: Foundation boxes with cataphoretic rustproof treatment, resetting release lever, gate fastening brace and screw for adjusting the opening limit-switch point
- 2 A4364: Release devices with lever key
- 1 ZM3E: Multifunction control panel for swing gates with two leaves, graphic alerts display, self-diagnosing safety devices and on-board radio decoding
- 1 AF43S: Plug-in radio-frequency control card 433,92 MHz
- 1 806TS-0270 TOP44RBN: 4-channel rolling code transmitter 433,92 MHz
- 1 TOP-RG58: Antenna cable
- 1 DIR10: Pair of 12 - 24 V AC - DC outdoor photocells – range 10 Mt
- 1 806LA-0020: Led flashing light with power supply from 24 v ac - dc up to 230 v ac, with double built-in antenna (433.92 mhz and 868.35 mhz), with white dome
- 1 806LA-0040: Wall-fastening base for krx flashing lights
- 1 Gate plate
