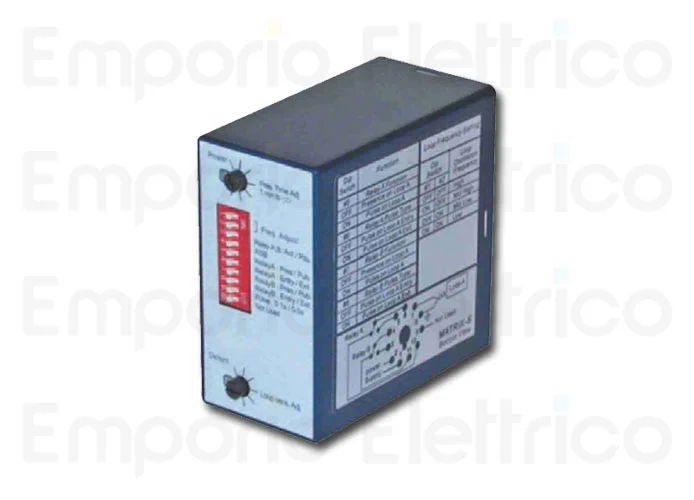

GENIUS - HIGH-PERFORMANCE SINGLE-CHANNEL INDUCTIVE VEHICLE DETECTION SYSTEM
- INSTALLED IN A COMPACT ENCLOSURE WITH CONNECTIONS VIA A STANDARD 11-PIN ROUND INDUSTRIAL CONNECTOR
- THE SYSTEM'S INTERVENTION SENSITIVITY CAN BE ADJUSTED TO SUIT ANY TYPE OF VEHICLE
- AUTOMATIC FREQUENCY TUNING
- WHEN SWITCHING ON, CONTROL AND MEASUREMENT OF THE OSCILLATION FREQUENCY OF EACH LOOP
- FOUR FREQUENCY SETTINGS
- CONTINUOUS UPDATING OF WORKING FREQUENCY
- LOOP INTERRUPTION OR SHORT-CIRCUIT SIGNALLING
- MULTIFUNCTIONAL SIGNALLING LED
- ADJUSTMENT VIA POTENTIOMETERS
- DIN GUIDE APPLICATION
RMG 1 SINGLE-CHANNEL
6100131
TECHNICAL FEATURES:
- Power supply (Vac/Vdc): 12 - 24
- Absorbed power (W): < 2.5
- Ambient temperature: -30°C + 70 °C
- Loop inductivity (μH): 20 - 1000
- Frequency range (kHz): 20 - 130 kHz on 2 levels
- Response sensitivity: 0.005% to 0.5% (δ/f) in 250 stages
- Response time: 25 ms
- Presence time: 1 min. to infinity in 250 stages
- Power supply cable: loop (m) < 100
- Max. capacity relay contacts: 230 Vac - 5A (resistive)
- Pulse duration (ms): 100 or 500
- Dimensions (mm): 77 x 40 x 75 (h)
- Managed spires: 1.
